BEST PUMP IN THE INDUSTRY
General Introduction
· Heavy-duty solid frame design offers rigidity and strength;
· One-piece concentric and thicker casing provides extended life over the conventional volute design, and minimize turbulence and abrasive wear;
· Same power end, to reduce greatly spares inventory;
· Open impeller with wider vanes for high viscosity drilling fluid transferring;
· Replaceable stuffing box cover with dual stuffing box bolts;
· Optional stuffing box for mechanical seal and packing seal
· Optional single Tungsten-Tungsten mechanical seal and double cartridge seal
· Long-life no adjustment mechanical seal for near zero leakage, and 3-piece packings for back-up;
· Easy maintain from front casing
· Replaceable shaft sleeve prevents shaft wear, Ceramic coated and SS316 shaft sleeve for option
· Advanced front and rear bearing design reduces both radial and thrust loads. Grease lubrication is the factory standard for below 2400rpm, and oil lubrication for bearings available upon request or above 2400 rpm
· External adjustment of impeller clearance extends pump performance life
· Large heavy-duty alloy steel shaft reduces deflection for packings and mechanical seals
· Back vanes reduce collection of solids at stuffing box and pressure
· Smooth impeller eye for min. turbulence and higher efficiency
· General design is left hand
rotation from casing, and right-hand rotation can be customized upon request.
BETTER Pump Unique Advantages
· Revolutionary design on Mission Magnum I series

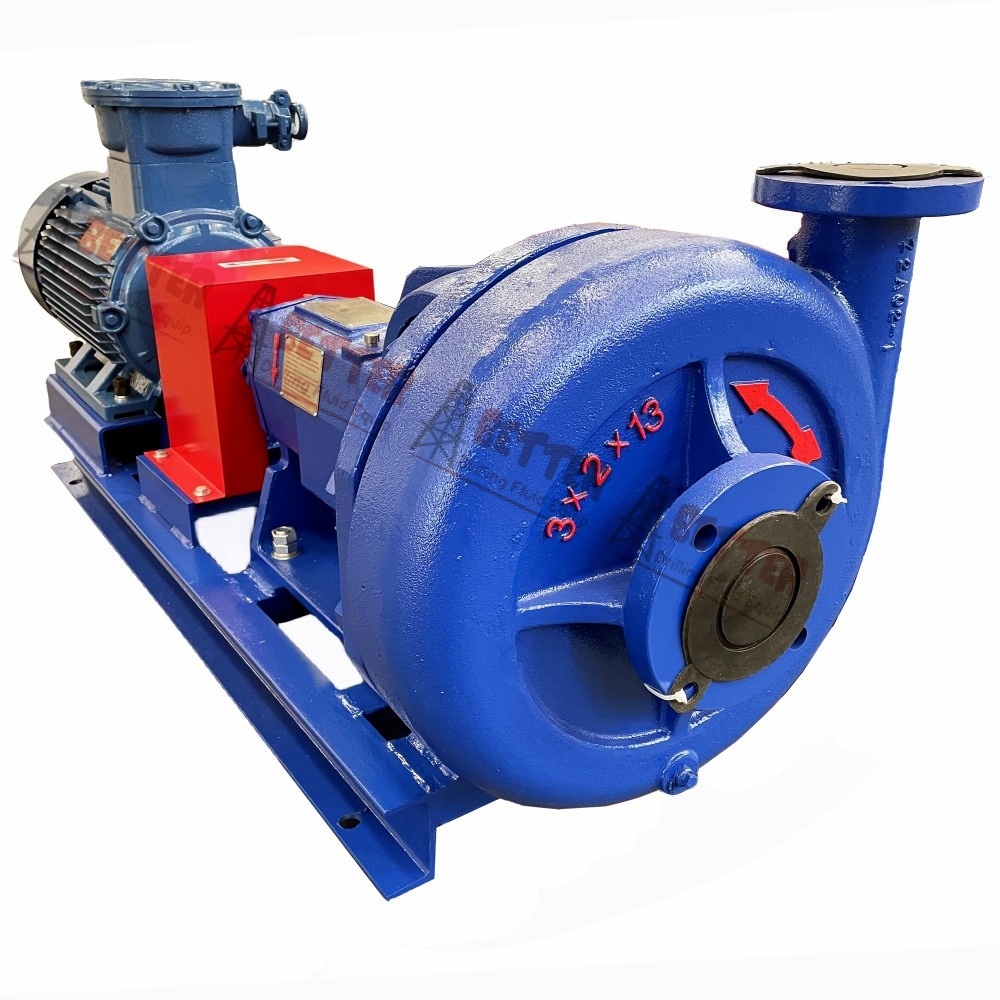

· Size from 3 x 2 x 13 to 10 x 8 x 14
· Flow rates from a few gallons per minute up to 4300 GPM
· Head pressure up to 550 feet
· Best utilized requiring up to 200HP
· For toughest jobs in drilling, production, well-servicing, and mineral industrial
· Perfect for oil-based drilling mud, cement, slurry, mine dewatering, etc.
· Powerful, durable and easy to maintain
· Available in hard iron, stainless steel, high chrome alloy and aluminum bronze fluid ends
· Process in resin/green sand casting, green sand casting, lost-form casting, coated sand-casting investment
· Hydro-testing before painting and packing
· Interchangeable with other popular brands
· Available to be driven by electric motor, diesel engines, hydraulic motors
· Available configuration in horizontal, over-head belt, vertical, close-coupled
Model |
BT-SB 10x8x14 |
BT-SB 8x6x14 |
BT-SB 8x6x11 |
BT-SB 6x5x14 |
Discharge Volume (Max.) |
4300 gpm |
2600 gpm |
2150 gpm |
1825 gpm |
Discharge Head (Max.) |
175ft |
205ft |
120ft |
225ft |
PRM (min.-max.) |
1200~1800 |
1200~1800 |
1200~1800 |
1200~1800 |
Inlet Diameter ( inch ) |
10 |
8 |
8 |
6 |
Outlet Diameter ( inch ) |
8 |
6 |
6 |
5 |
Weight (lb) |
705 |
595 |
595 |
529 |
Dimension ( inch ) |
38 x 26 x 26 |
38 x 25 x 25 |
38 x 24 x 24 |
36 x 22 x 21 |
Model |
BT-SB 6x5x11 |
BT-SB 5x4x14 |
BT-SB 4x3x13 |
BT-SB 3x2x13 |
Discharge Volume (Max.) |
1800 gpm |
1150 gpm |
875 gpm |
550 gpm |
Discharge Head (Max.) |
120ft |
215ft |
530ft |
500ft |
PRM (min.-max.) |
1200~1800 |
1200~2100 |
1200~3600 |
1200~3600 |
Inlet Diameter ( inch ) |
6 |
5 |
4 |
3 |
Outlet Diameter ( inch ) |
5 |
4 |
3 |
2 |
Weight (lb) |
529 |
529 |
445 |
432 |
Dimension ( inch ) |
36 x 20 x 20 |
36 x 20 x 20 |
34 x 19 x 19 |
34 x 19 x 19 |
GENERAL APPLICATION
· Supercharging
· Desanding and Desilting
· Mud Processing
· Saltwater Disposal
· Water Flooding
· Water Well Drilling
· Industrial Transfer Pumping
