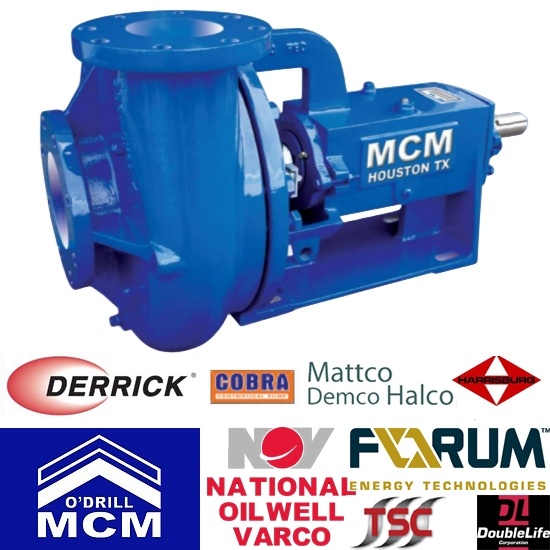

O'Drill MCM 250 Series Pump Replacement Parts

At BETTER, you will find NOT ONLY bare pump, pump complete packages. We also offer replacement Centrifugal Pumps, as well as refurbishment and repair of your existing pumps bought from NOV mission magnum, Halco, O’Drill MCM, Forum Energy, Double Life, Southwest, ABCO, Mesco, TSC, Midcontinents, Dupagro or any China mission pump supplier.


BETTER offers full set of pump repairs as the following:

Hard Iron, 26% High Chrome, SS.304, SS 316 Casing, Impeller, Stuffing Box
SKF bearings
40Cr heat treated shaft
Fiber housing gaskets
Stainless steel, Ceramic coating shaft sleeve
NBR, Viton o-rings
Hard iron housing, bearing cover
Tungst.Carbide Mechanical seal
Teflon, Graphite shaft packing

Item #

Part #

Description

Qty. Req'd.

1

P25PED

250 Pedestal

1

2

P25SHFT

250 Shaft

1

3

P25OBBH

250 Outboard Bearing Housing

1

4

P25PG

250 Packing Gland

1

5

P25IBBRG

250 Inboard Bearing

1

6

P25SRW

250 Slinger Ring - Water

1

7

P25IBBC

250 Inboard Bearing Cover

1

8

P25OBBRG

250 Outboard Bearing

2

9

P25OBBC

250 Outboard Bearing Cover

1

10

P25MSXX

250 Mechanical Seal

1

10

P25PMST

250 Teflon Packing Assembly

1

10

P25PMSK

250 King Packing Assembly

1

10

P25PMSG

250 Graphite Packing Assembly

1

11

P25GABA

250 Gland Bolt Assembly

2

11A

P25CGB

250 Clevis Gland Bolt

2

12

P25SHSLVC

250 Shaft Sleeve, Ceramic Coated

1

13

P25SB/PK

250 Stuffing Box for packed Pumps

1

13

P25SB/MS

250 Stuffing Box for Mechanical Seals

1

14

P25D233MRXXX

250 2X3X13 Ductile Iron Right Hand Impeller

1

14

P25D343MRXXX

250 3X4X13 Ductile Iron Right Hand Impeller

1

14

P25D454MRXXX

250 4X5X14 Ductile Iron Right Hand Impeller

1

14

P25D561MRXXX

250 5X6X11 Ductile Iron Right Hand Impeller

1

14

P25D564MRXXX

250 5X6X14 Ductile Iron Right Hand Impeller

1

14

P25D681MRXXX

250 6X8X11 Ductile Iron Right Hand Impeller

1

14

P25D684MRXXX

250 6X8X14 Ductile Iron Right Hand Impeller

1

15

P25D233H

250 2X3X13 Ductile Iron Right Hand Housing

1

15

P25D343H

250 3X4X13 Ductile Iron Right Hand Housing

1

15

P25D454H

250 4X5X14 Ductile Iron Right Hand Housing

1

15

P25D561H

250 5X6X11 Ductile Iron Right Hand Housing

1

15

P25D564H

250 5X6X14 Ductile Iron Right Hand Housing

1

15

P25D681H

250 6X8X11 Ductile Iron Right Hand Housing

1

15

P25D684H

250 6X8X14 Ductile Iron Right Hand Housing

1

15B

P25CWP343

250 Casing Wear Pad

1

15B

P25CWP454

250 Casing Wear Pad

1

15B

P25CWP561

250 Casing Wear Pad

1

15B

P25CWP564

250 Casing Wear Pad

1

15B

P25CWP681

250 Casing Wear Pad

1

15B

P25CWP684

250 Casing Wear Pad

1

15B

P25CWP8104

250 Casing Wear Pad

1

16

P25HSN

250 Housing Stud w/ Nut

12

17

P25HG

250 Housing Gasket

1

18

P25IMS

250 Impeller Seal/O-ring

1

18

P25FEGK

250 Fluid Gasket Kit

1

19

P25SSS

250 Shaft Sleeve Seal/O-ring

1

20

P25IBBOS

250 Inboard Bearing Oil Seal

1

21

P25IBBES

250 Inboard Bearing Exclusion Seal

1

21

P25OSK

250 Oil Sea Kit

1

22

P25OBBOS

250 Outboard Bearing Oil Seal

1

23

P25IBBCG

250 Inboard Bearing Cover Gasket

1

24

P25OBBHS

250 Outboard Bearing Housing Seal/O-Ring

1

24

P25PEGK

250 Power End Gasket Kit

25

P250BBCS

250 Outboard Bearing Cover Seal/O-Ring

1

26

P25BLNK

250 Bearing Lock Nut Kit

1

27

P25OBBCB

250 Outboard Bearing Cover Bolt

2

28

P25BHB

250 Bearing Housing Bolt

4

29

P25IBBCB

250 Inboard Bearing Cover Bolt

2

30

P25BCP

250 Bearing Cover Plugs

2

31

P25SSBB

250 Stuff Box Bolt

1

32

P25ODP

250 Oil Drain Plug

1

33

P25ZGF

250 Zert Grease Fitting

1

34

P25ODS

250 Oil Dip Stick

1

35

P25CK

250 Coupling Key

1

Remarks: The below mentioned part number is used for helping our customer fast confirmation only. We are not authorized to use these part numbers on any of our pump parts.
