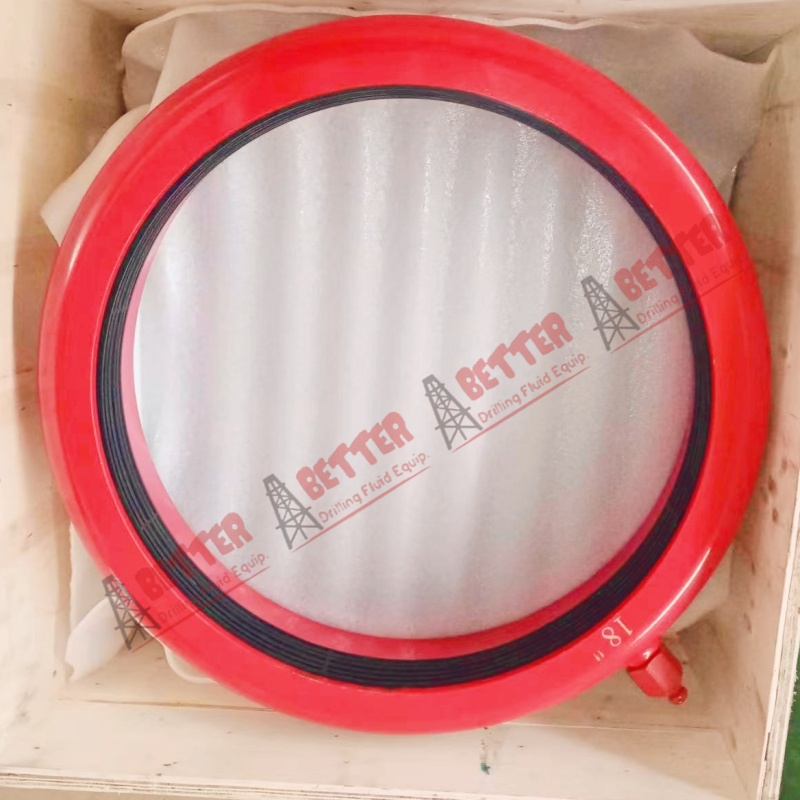

AIR SEAL UNION OILFIELD UNIONS 18IN 20IN 22IN 26IN 28IN

Product No.:2023108133925

  • Details

KEMPER STYLE SEAL-O-GRIP (AIR) UNION LARGE SIZE CUSTOMIZATION

Seal-O-Grip Unions, also called Air-O-Grip Union, pneumatic union, or Air-inflatable Union, Air Grip Union, Air seal union, it can quickly connect and disconnect mud suction lines, return lines, and other low pressure fluid lines between mud tanks. These unions provide a tight seal even if the pipe is not properly aligned (to certain limits).

Features-

Fast, easy make-up without close alignment

Carbon steel body welds in place on mud tanks, with NBR air tube for sealing

Allows pipe expansion or misalignment up to 14°

No nuts, bolts, or wrenches required

KEMPER Seal-O-Grip Union style

Grey or Red Nut & Sub, customized color & logo available

Technical Parameter-

Medium temperature:-45℃~55℃

Reconversion time when deflated: 1-3 seconds

Working medium: Oil based mud, water based mud, or other drilling fluid

Line pressure up to 150psi and tube pressure is Max. 50psi above than line pressure

Structure: Casting Steel Shell and Air Inflatable Tube (NBR)

Specification

Line Pipe Size

Part No.

Description

Bulldog Part No.

4-inch

BT-P480

BT-P480T

4” Union Complete

Inflatable Tube Only

AG480

AG480-T

6-inch

BT-P680

BT-P680T

6” Union Complete

Inflatable Tube Only

AG680

AG680-T

8-inch

BT-P880

BT-P880T

8” Union Complete

Inflatable Tube Only

AG880

AG480-T

10-inch

BT-P1080

BT-P1080T

10” Union Complete

Inflatable Tube Only

AG1080

AG1080-T

12-inch

BT-P1280

BT-P1280T

12” Union Complete

Inflatable Tube Only

AG1280

AG1280-T

14-inch

BT-P1480

BT-P1480T

14” Union Complete

Inflatable Tube Only

AG1480

AG1480-T

16-inch

BT-P1680

BT-P1680T

16” Union Complete

Inflatable Tube Only

AG1680

AG41680-T

18-inch

BT-P1880

BT-P1880T

18” Union Complete

Inflatable Tube Only

/

20-inch

BT-P2080

BT-P2080T

20” Union Complete

Inflatable Tube Only

/

22-inch

BT-P2280

BT-P2280T

22” Union Complete

Inflatable Tube Only

/

26-inch

BT-P2680

BT-P2680T

26” Union Complete

Inflatable Tube Only

Warranty: All BETTER’s Hammerseal unions and seal-o-grip unions are warranted to be free of defects in materials and workmanship. Any defect happen, we will bring you free return and send new.

Remarks: The below mentioned part number is used for helping our customer fast confirmation only. We are not authorized to use these part numbers on any of our pump parts.
