BETTER Drilling Fluid Solution Limited

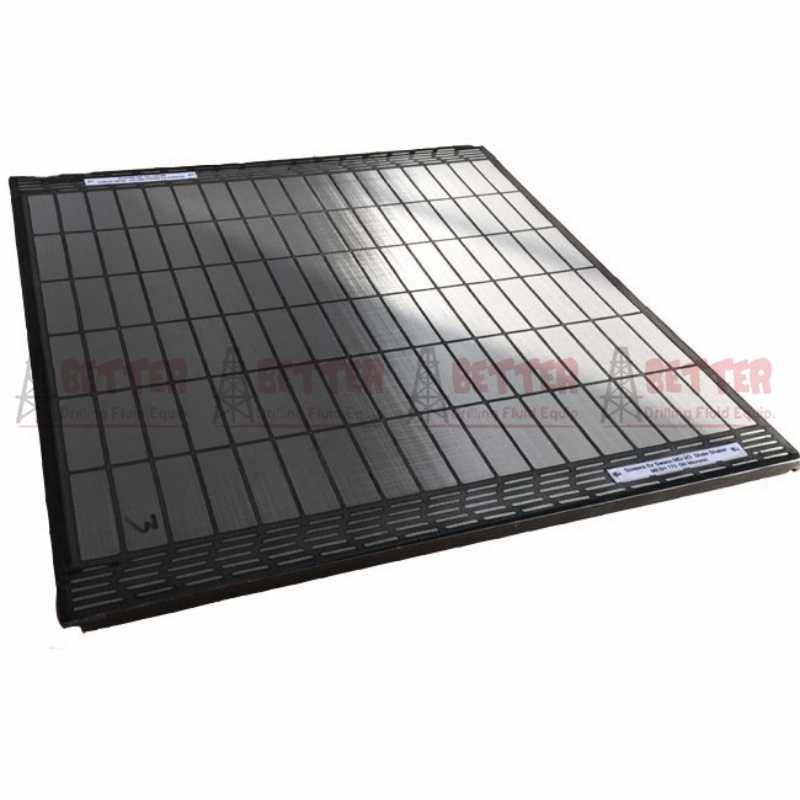

SWACO MD-2/MD-3 Shale Shaker Replacement Screen
For M-I SWACO MD-2 & MD-3 shale shaker.
Technical Parameter
Screen Code: BT-Swaco/MD-2, BT-Swaco/MD-3
Size: 615X610 mm(24.49” X 25.8”)
Mesh Material: stainless steel 304/316/316 L.
Body Material: Q235 steel frame/composite frame .
Screen Mesh type:XR, XL, HC, MG
Screen Layered: single, dual or triple layered.
Color: black, orange, green, blue.
Package: 2 pcs per carton, packed in wooden case
API RP 13C Designation: API 10-API 325.
Working Life: 400-450 hours
Warranty: 1 year
Compatible With:M-I Swaco, MD-2 & MD-3, shaker screen
API Designation
Part Number
Part Number
Part Number
Part Number
API 10
/
/
/
J/WMD3MG010C
API 18
/
/
/
J/WMD3MG020C
API 20
J/WMD3XL024C
/
/
API 30
/
/
/
J/WMD3MG030C
API 35
/
J/WMD3XL038C
/
J/WMD3MG040C
0.8MM
/
/
/
J/WMD3UR008T
2.5MM
/
/
/
J/WMD3UR025T
API 50
/
J/WMD3XL050C
/
/
API 60
J/WMD3XR084C
J/WMD3XL070C
J/WMD3HC084C
/
API 60
/
/
J/WMD3HC105C
API 70
J/WMD3XR105C
J/WMD3XL084C
J/WMD3HC120C
/
API 80
J/WMD3XR120C
J/WMD3XL105C
J/WMD3HC165C
/
API 100
J/WMD3XR165C
J/WMD3XL120C
J/WMD3HC200C
/
API 120
J/WMD3XR200C
J/WMD3XL150C
J/WMD3HC230C
/
API 140
J/WMD3XR230C
J/WMD3XL165C
/
/
API 140
J/WMD3XR270C
J/WMD3XL200C
/
/
API 170
/
J/WMD3XL220C
J/WMD3HC270C
/
API 200
/
J/WMD3XL230C
J/WMD3HC325C
/
API 230
J/WMD3XR325C
J/WMD3XL270C
/
/
API 270
/
J/WMD3XL325C
/
/
API 270
J/WMD3XR400C
J/WMD3XL360C
/
/
API 325
J/WMD3XR500C
J/WMD3XL400C
/
/
