BT-SBM 6 x 5 x 11 Centrifugal Pump

Products

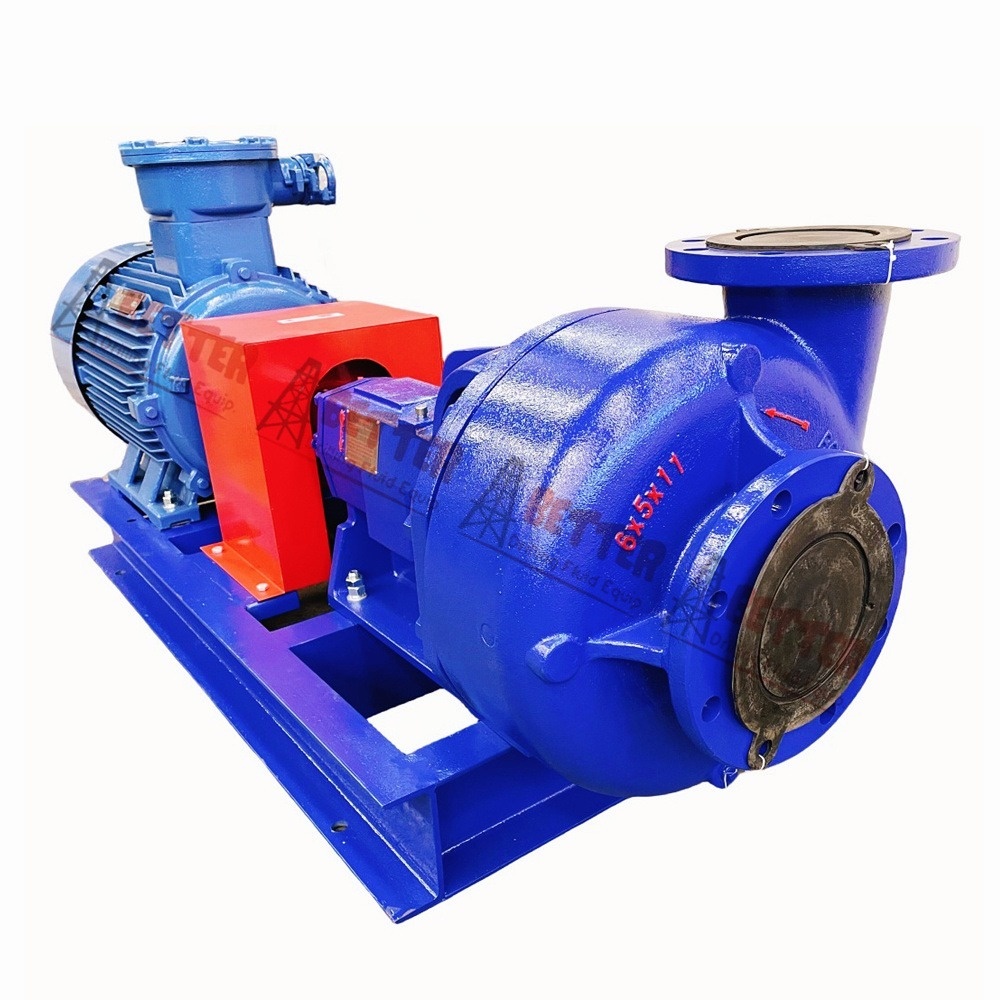

BT-SBM 6 x 5 x 11 Centrifugal Pump

Product No.:202391311841

  • Details

BEST PUMP IN THE INDUSTRY

General Introduction


BETTER BT-SB type centrifugal pumps are designed basing on the imported Mission Magnum I pumps, which has been proven to be the best centrifugal design for handling abrasive mud in drilling, well-servicing and industrial application, as more powerful, more durable and easier to maintain than any conventional pumps in use today. It always uses for transferring the drilling fluid or mud/slurry with some solids or sea water.

Our material includes hard iron, ductile iron, high chrome iron, stainless steel and al-bronze. We use sand casting and investment casting process to cast raw material, and machine by CNC or NC machines.
BETTER not only build our own brand pump, we also accept the customized brand or color, and became a widely recognized sand pump partner, now our pumps and parts are exported with those famous solid control factories servicing the drilling fluid processing markets.

We are great proud to account some world leading companies as our partners, who ensure us to continue to pay attention to the details that improve performance and extend pump quality to set BETTER pump from the competition. Now BETTER’s parts are completely interchangeable with those popular pumps on the market. And our QC system has been improved continually based on ISO 9001:2000.

Competitive price, shorten lead time, and extensive compatibility had made BETTER pump to be a superior choice for all operators and contractors in today’s pump markets, we believe that BETTER pump will work or beyond your expectations.


Feature

· Heavy-duty solid frame design offers rigidity and strength;
· One-piece concentric and thicker casing provides extended life over the conventional volute design, and minimize turbulence and abrasive wear;
· Same power end, to reduce greatly spares inventory;
· Open impeller with wider vanes for high viscosity drilling fluid transferring;
· Replaceable stuffing box cover with dual stuffing box bolts;
· Optional stuffing box for mechanical seal and packing seal
· Optional single Tungsten-Tungsten mechanical seal and double cartridge seal
· Long-life no adjustment mechanical seal for near zero leakage, and 3-piece packings for back-up;
· Easy maintain from front casing
· Replaceable shaft sleeve prevents shaft wear, Ceramic coated and SS316 shaft sleeve for option
·  Advanced front and rear bearing design reduces both radial and thrust loads. Grease lubrication is the factory standard for below 2400rpm, and oil lubrication for bearings available upon request or above 2400 rpm
·  External adjustment of impeller clearance extends pump performance life
·  Large heavy-duty alloy steel shaft reduces deflection for packings and mechanical seals
·  Back vanes reduce collection of solids at stuffing box and pressure
·  Smooth impeller eye for min. turbulence and higher efficiency
·  General design is left hand rotation from casing, and right-hand rotation can be customized upon request.


BETTER Pump Unique Advantages

·     Revolutionary design on Mission Magnum I series

·     Size from 3 x 2 x 13 to 10 x 8 x 14

·     Flw rates from a few gallons per minute up to 4300 GPM

·     Head pressure up to 550 feet

·     Best utilized requiring up to 200HP

·     For toughest jobs in drilling, production, well-servicing, and mineral industrial

·     Perfect for oil-based drilling mud, cement, slurry, mine dewatering, etc.

·     Powerful, durable and easy to maintain

·     Available in hard iron, stainless steel, high chrome alloy and aluminum bronze fluid ends

·     Process in resin/green sand casting, green sand casting, lost-form casting, coated sand-casting investment

·     Hydro-testing before painting and packing

·     Interchangeable with other popular brands

·     Available to be driven by electric motor, diesel engines, hydraulic motors

·     Available configuration in horizontal, over-head belt, vertical, close-coupled


Specification Parameter

Model

BT-SB 10x8x14

BT-SB 8x6x14

BT-SB 8x6x11

BT-SB 6x5x14

Discharge Volume (Max.)

4300 gpm

2600 gpm

2150 gpm

1825 gpm

Discharge Head (Max.)

175ft

205ft

120ft

225ft

PRM (min.-max.)

1200~1800

1200~1800

1200~1800

1200~1800

Inlet Diameter ( inch )

10

8

8

6

Outlet Diameter ( inch )

8

6

6

5

Weight (lb)

705

595

595

529

Dimension ( inch )

38 x 26 x 26

38 x 25 x 25

38 x 24 x 24

36 x 22 x 21

Model

BT-SB 6x5x11

BT-SB 5x4x14

BT-SB 4x3x13

BT-SB 3x2x13

Discharge Volume (Max.)

1800 gpm

1150 gpm

875 gpm

550 gpm

Discharge Head (Max.)

120ft

215ft

530ft

500ft

PRM (min.-max.)

1200~1800

1200~2100

1200~3600

1200~3600

Inlet Diameter ( inch )

6

5

4

3

Outlet Diameter ( inch )

5

4

3

2

Weight (lb)

529

529

445

432

Dimension ( inch )

36 x 20 x 20

36 x 20 x 20

34 x 19 x 19

34 x 19 x 19


GENERAL APPLICATION

·     Supercharging

·     Desanding and Desilting

·     Mud Processing

·     Saltwater Disposal

·     Water Flooding

·     Water Well Drilling

·     Industrial Transfer Pumping
