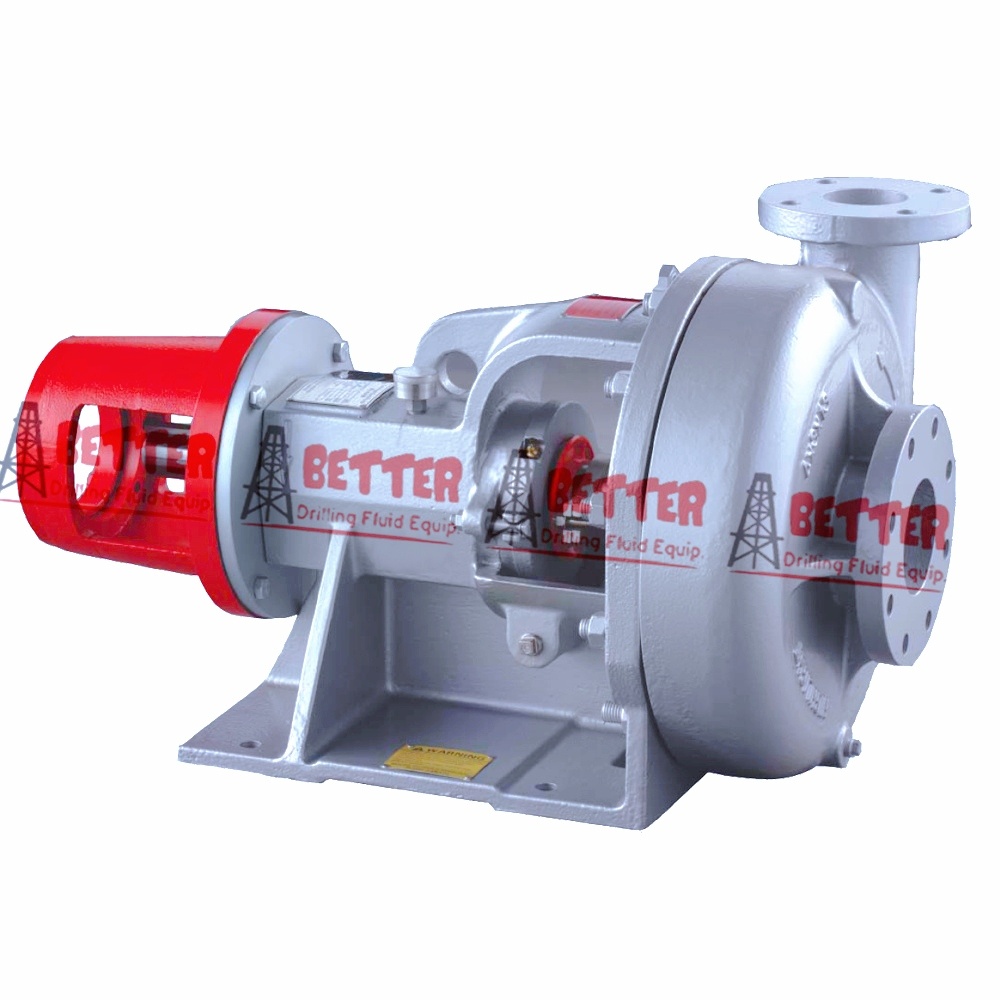

MISSION SANDMASTER STYLE CENTRIFUGAL PUMPS
BETTER SBSM series
Centrifugal Pump is designed equivalent to Mission Sandmaster Centrifugal Pumps.
They have compact structure and can be adapted for hydraulic motor drive,
which makes it ideal for limited space. They are popular mounted on frac truck and
mixing unit as blending or pump charging service. They include virtually all of
the features of MAGNUM I pumps. Size covers 3x2x13 to 10x8x14, with speed
up to 3500 rpm.
Common applications,
· Pump Charging Service
· Blending and Cement
· Water well Drilling
· Oilfield Frac Trucks
|
Model |
10×8×14 |
8×6×14 |
8×6×11 |
6×5×14 |
6×5×11 |
5×4×14 |
4×3×13 |
3×2×13 |
|
Discharge capacity |
260～300 m3/h |
240～260 m3/h |
220～240 m3/h |
200～220 m3/h |
120～200 m3/h |
80～120 m3/h |
60～80 m3/h |
50～60m3/h |
|
Pump Head |
28~33 |
28～33m |
24～28m |
24～28m |
24～28m |
24～28m |
22～28m |
22～28m |
|
Efficiency |
65% |
65% |
65% |
65% |
65% |
65% |
65% |
65% |
|
Motor power |
75/90 kW |
55/75 kW |
37/45 kW |
37/45/55 kW |
30/37/45 kW |
18.5/22/30 kW |
11/15 kW |
7.5/11 kW |
|
Motor speed |
1450/1750rpm |
1450/1750rpm |
1450/1750rpm |
1450/1750rpm |
1450/1750rpm |
1450/1750rpm |
1450/1750rpm |
1450/1750rpm |
· Premium choice for limited space, compact structure
· Includes all of features of Magnum, but 4in shorten frame
· Size from 3 x 2 x 13 to 10 x 8 x 14
· Flow rates from a few gallons per minute up to 4300GPM
· Head pressure up to 550 feet
· Best utilized requiring up to 200HP
· Equivalent to MCM Mud Master series pump
· Mostly driven by hydraulic motors
· Variable speed hydraulic drive makes it excellent for water well drilling and well service mounted truck

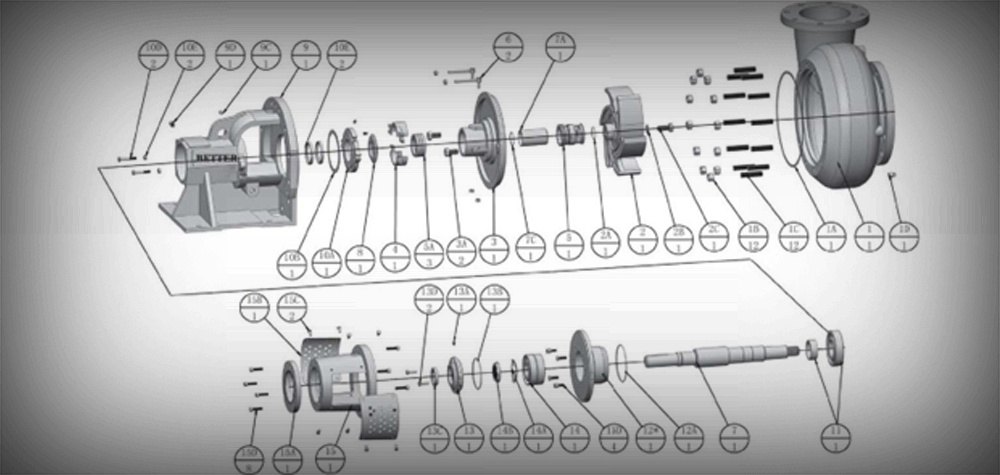

Exploded View
BETTER SBSM series CENTRIFUGAL PUMP PARTS
|
ITEM |
QTY EA |
DESCRIPTION |
MATER. |
BETTER |
MISSION |
|
1* |
1 |
Casing |
Hard Iron |
See below |
See below |
|
1A |
1 |
Gasket, casing |
Fiber |
BT-10399-46-1 |
648403012 |
|
1B |
12 |
Nut, casing 3/4-10 hex head |
Stl., |
BT-3932-61 |
648402014 |
|
1C |
12 |
Stud, casing 3/4-10 x 3 1/4”long |
Stl., |
BT-3862-76 |
648401115 |
|
1D |
1 |
Plug, casing drain |
Stl |
BT-8505-04-01 |
86485503 |
|
1E |
1 |
Plug, flush line |
Iron |
BT-8505-04-01 |
646400507 |
|
2* |
1 |
Impeller |
Hard Iron |
See below |
See below |
|
2A |
1 |
Seal, impeller |
Viton |
BT-19110-72 |
64845082 |
|
2B |
1 |
Washer, impeller |
Stl |
- |
7300239 |
|
2C |
1 |
Bolt, impeller lock |
Stl |
- |
7415648 |
|
3* |
1 |
Stuffing box, mech.seal |
Hard Iron |
BT-22223-01-30 |
641116157 |
|
3* |
1 |
Stuffing box, packed |
Hard Iron |
BT-20614-01-30 |
643365042 |
|
3A |
2 |
Bolt, stuffing box 1/2-13 x 1 1/4” |
Stl |
BT-3861-117 |
648401016 |
|
3B |
1 |
Grease fitting |
Brass |
BT-19368-01 |
601499403 |
|
4 |
1 |
Gland assy., packing |
Stl. 304 |
BT-20622A |
641103338 |
|
5A# |
1 |
Seal, mechanical |
Tungsten Carbide |
BT-22451-1 |
648414308 |
|
5A# |
3 |
Packing,Shaft-M.S. Backup |
Teflon |
BT-H2537-24A |
648402600 |
|
5A~ |
1 |
Graphite Packing,Shaft |
Graphite |
BT-8264-24-OBA |
661007005 |
|
5A~ |
1 |
Teflon Packing, Shaft |
Teflon |
BT-8264-24-7A |
661007011 |
|
5A~ |
1 |
Kevlar Packing, Shaft |
Kevlar |
BT-25014-04M-C |
661007006 |
|
|
1 |
Lantern Ring |
PP |
- |
648408607 |
|
6 |
2 |
Bolt assy,gland |
Stl 304 |
BT-B3701A |
601102494 |
|
7 |
1 |
Shaft |
40Cr |
BT-20612-02-33 |
646490557 |
|
7A |
1 |
Sleeve, shaft, M.S. |
SS316 |
BT-20943-21 |
641102182 |
|
7A |
1 |
Sleeve, shaft, Pack |
Ceramic Coated |
BT-20613-21G-7A |
641102181 |
|
7B |
1 |
Key, shaft |
Stl |
BT-4372-5-21 |
601212392 |
|
7C |
1 |
Seal, shaft sleeve |
Viton |
BT-23444-01-72 |
648415156 |
|
8 |
1 |
Deflector assembly |
Composit |
BT-22210-1A |
641116108 |
|
9 |
1 |
Frame, grease lubricated |
Cast iron |
BT-20618-12-1 |
644302499 |
|
9C |
1 |
Plug, Frame Drain |
Stl |
BT-8505-05 |
601474737 |
|
9D |
1 |
Breather |
Stl |
BT-8627-01 |
/ |
|
9E |
|
|
|
N/A |
|
|
9F |
|
Oil cups b18 |
Al |
|
|
|
9G |
|
Bolt, casing jack |
Stl |
Bt-2538-1h |
/ |
|
10A |
1 |
Cover, inboard bearing |
Iron |
BT-20626 |
644303109 |
|
10B |
1 |
Gasket, I.B.Brg. Cover |
fiber |
BT-20625 |
648408706 |
|
10C |
1 |
Oil seal, I.B.Brg. Cover |
Buna-n |
BT-20619-01 |
648408300 |
|
10D |
2 |
Bolt, I.B.Brg. Cover 1/2”-13 x 1 1/2” Long |
Stl |
BT-3861-1 |
601407505 |
|
10E |
2 |
Nut, I.B.Brg.Cover |
Stl |
BT-3932-2 |
601408560 |
|
10G |
1 |
Grease fitting |
Brass/Stl |
BT-21641-01 |
661010033 |
|
11 |
1 |
Bearing, inboard |
Vendor |
BT-20615-1 |
661009010 |
|
12 |
1 |
Housing, O.B.bearing |
Iron |
BT-20624-01-01 |
644308504 |
|
12A |
1 |
Seal, O.B.Brg. housing |
Buna-n |
BT-7496-253 |
648402295 |
|
12B |
4 |
Bolts, O.B.Brg. housing 1/2”-13 x 1 1/2” Long |
Stl |
BT-3861-138 |
648401057 |
|
12C |
2 |
Nut, O.B.Brg.housing 1/2”-13 jam nut |
Stl |
BT-3932-62 |
658404702 |
|
13 |
1 |
Cover,O.B.Bearing |
Iron |
BT-20617-01-01 |
641103296 |
|
13A |
1 |
Grease zerk, O.B.Brg.Cvr. |
Brass/Stl |
BT-19368-01 |
661010020 |
|
13B |
1 |
O-ring, O.B.Brg.Cover |
Buna-n |
BT-7496-26 |
072200017 |
|
13C |
1 |
Oil seal, O.B.Brg.Cover |
Buna-n |
BT-20619-02 |
648408359 |
|
13D |
2 |
Bolt, O.B.Brg.Cover 3/8-16 x 1” Long |
Stl |
BT-3861-139 |
648401081 |
|
14 |
2 |
Bearing, O.B.(2 Req’d) |
Vendor |
BT-20616-1 |
648408201S |
|
14A |
1 |
Lockwasher,O.B.Bearing |
Stl |
BT-6124-4 |
648402105 |
|
14B |
1 |
Locknut, O.B.Bearing |
Stl |
BT-6123-4 |
648402055 |
|
15 |
1 |
Hydraulic motor adaper |
Stl |
BT-22225-01-01 |
/ |
|
15A |
1 |
Spacer, Hydraulic motor |
Stl |
BT-2273-1 |
/ |
|
15B |
1 |
Guard, Hydraulic drive adapter |
304SS |
BT-HDAGUARDS |
/ |
|
15C |
2 |
Bolt, Adapter guard |
Stl |
|
/ |
|
15D |
8 |
Bolt, Adapter spacer |
Stl |
|
/ |
When you want to replace new Centrifugal Pumps, as well as refubishment and repair of your existing Mission Sandmaster Centrifugal Pump or MCM Mud Master Pump, PLEASE DO NOT HESITATE TO CONTACT US.
