15000PSI Fig 1502 Hammer Union Crosses FxFxMxF Integral Fittings

Products

15000PSI Fig 1502 Hammer Union Crosses FxFxMxF Integral Fittings

Product No.:20231010153929

  • Details

INTEGRAL FITTINGS

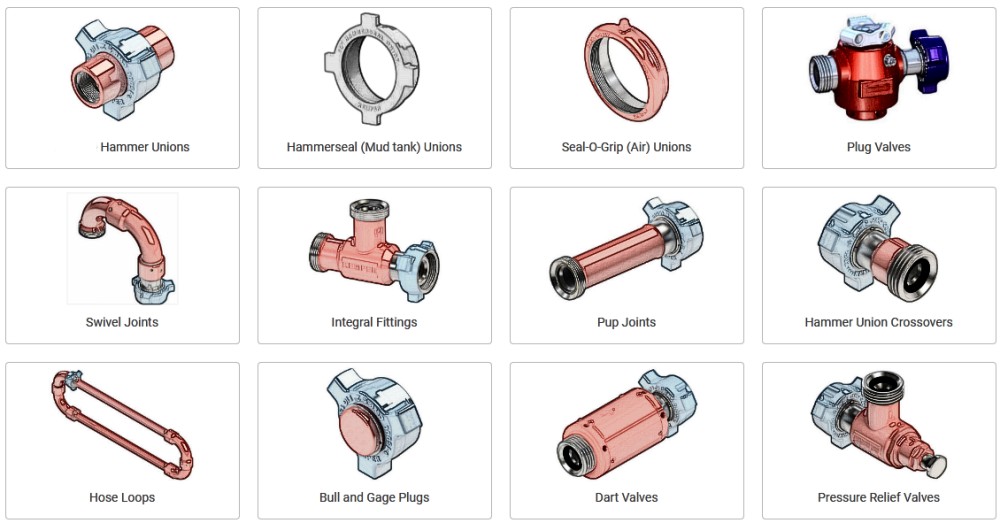

BETTER weco style adapters and integral forged fittings are ideal for handling fluids at cold working pressure up to 20000 psi. Block Tee, elbows, crosses, wyes, laterals can be combined to suit virtually any installation, also union crossover, pup joints, swivel joints, steel loop hose can be provided.

Integral Fitting Crosses, Integral unions, belong to the Integral Fittings family. Our union crosses are fully designed, produced, and tested according to API 6A and API 16C standards. These crosses are widely used in cementing, fracturing and testing lines, and other well service applications. Crosses for both standard service and sour service are available. Our Hammer Union Crosses are interchangeable with FMC Weco’s and other major brands.

Material

Integral Forged Alloy Steel

Material Standards

AISI 4130, AISI 4140, 35CrMo, 42CrMo

Size

1”, 2", 3", 4"

End Conection

Fig.602, Fig.1002, Fig.1502, Fig.2002

Usage

Oil and gas, offshore industries

Pressure

Standard Service (15000 PSI),H2S Service, Sour Gas (10000 PSI)

Temperature Range

-46~121 c degree

Standard

API Spec.16A, 16C, NACE-MR-01-75

Origin

CHINA

Brand

BETTER

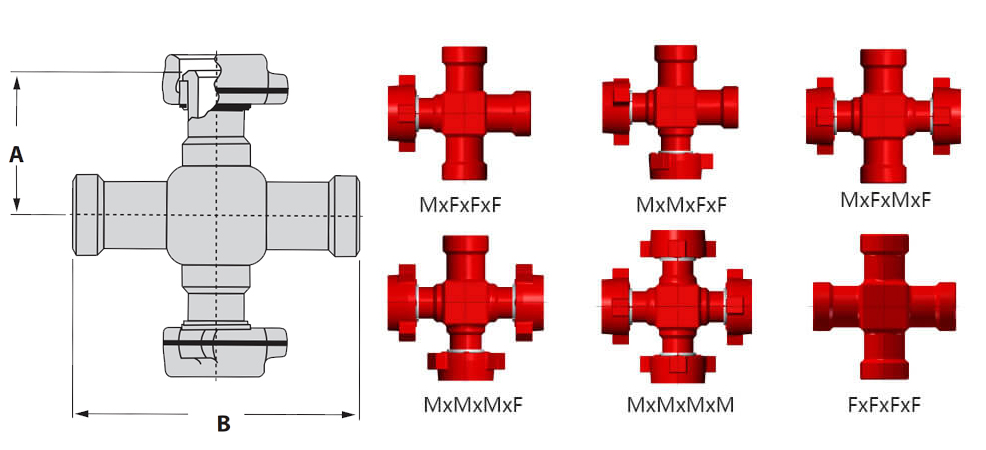

Block Crosses Standard

Nom.

Size in.

End Connection

CWP Psi

Part No.

Dimensional Data

FXFXFXF

FXFXMXF

FXFXMXM

FXMXMXF

FXMXMXM

MXMXMXM

A mm

B mm

1

Fig.1502

15000

P506107

P506113

P506118

P506129

P506137

P506146

191

381

1.5

Fig.1502

15000

P503531

3269120

P506119

P506130

P506138

P506147

191

381

2

Fig.602

6000

P506108

P506114

3262655

P506131

P506139

P506148

191

381

Fig.1502

15000

3257972

3257973

3258450

3258451

3257976

3257975

191

381

Fig.2002

20000

3267282

P506115

P506120

P506132

P506140

P506149

191

381

3

Fig.602

6000

P506109

P506116

P506121

P506133

P506141

P506150

203

406

Fig.1502

15000

P506110

P517401

P506122

P506134

P506142

P506151

203

406

Fig.2002

20000

P506143

203

406

4

Fig.602

6000

P506111

P504791

P506123

P506135

P506144

P506152

208

417

Fig.1502

15000

P506112

P506117

P506124

P506136

P506145

P506153

208

417

Fig.2002

20000

208

417


How to Order

BETTER is committed to being one of your valued suppliers. We are dedicated to answering your inquiries and processing your orders in the shortest time. Your help by supplying as much relevant information as possible will greatly improve our ability to meet or exceed your expectations.

When ordering standard items for known applications, all that is required is the part numbers with a brief description; when ordering non-standard items for special applications, some extra information will be required as below:

1.    Size, pressure rating, model and style

2.    Type of fluid to be handled

3.    The operating temperature

4.    If special material required

5.    If special documentation required

6.    Other application mechanical loads or movement


Wecome to contact us to know more flow control products!
