INTEGRAL FITTINGS
BETTER weco style adapters and integral forged fittings are ideal for handling fluids at cold working pressure up to 20000 psi. Block Tee, elbows, crosses, wyes, laterals can be combined to suit virtually any installation, also union crossover, pup joints, swivel joints, steel loop hose can be provided.

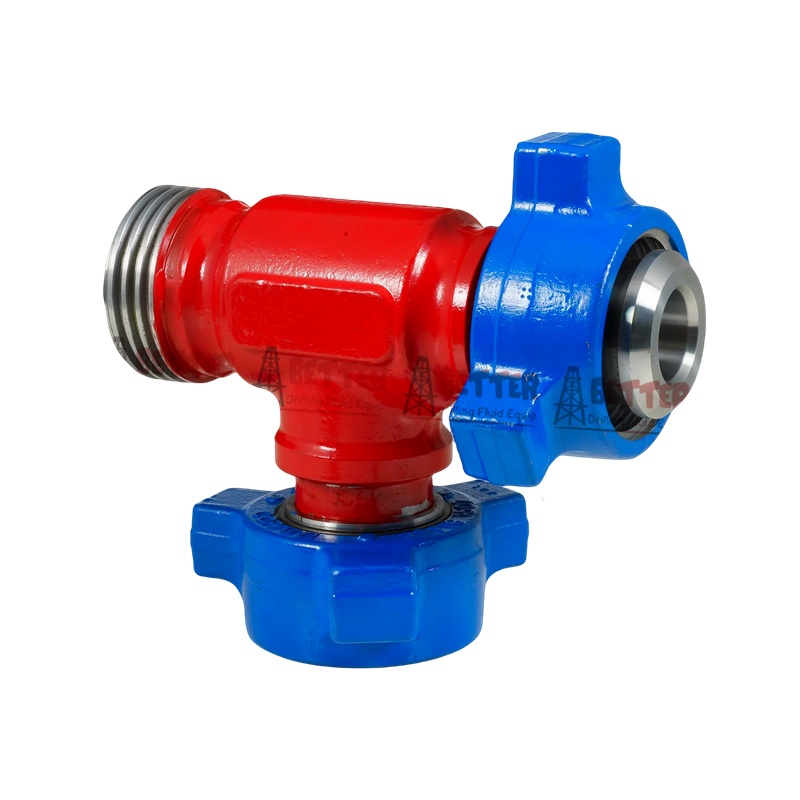

Integral
Fitting Tee, Integral unions, belong to the Integral Fittings family. Our
union crosses are fully designed, produced, and tested according to API 6A and
API 16C standards. These crosses are widely used in cementing, fracturing and
testing lines, and other well service applications. Crosses for both standard
service and sour service are available. Our Hammer Union Crosses are
interchangeable with FMC Weco’s and other major brands.
Material |
Integral Forged Alloy Steel |
Material Standards |
AISI 4130, AISI 4140, 35CrMo, 42CrMo |
Size |
1”, 2", 3", 4" |
End Conection |
Fig.602, Fig.1002, Fig.1502, Fig.2002 |
Usage |
Oil and gas, offshore industries |
Pressure |
Standard Service (15000 PSI) |
Temperature Range |
-46~121 c degree |
Standard |
API Spec.16A, 16C, NACE-MR-01-75 |
Origin |
CHINA |
Brand |
BETTER |

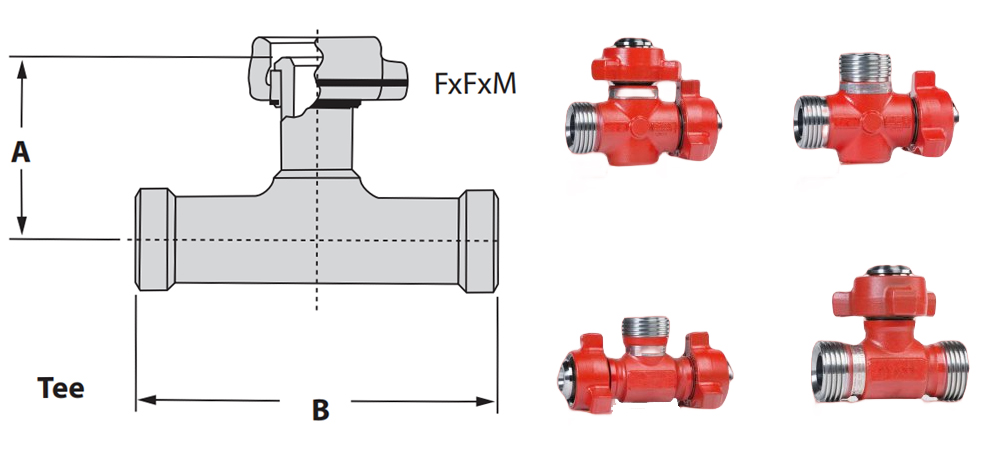

Block TEE standard |
||||||||||
Nom. Size in. |
End Connection |
CWP Psi |
Part No. |
Dimensional |
||||||
F x F x M |
||||||||||
FXFXF |
FXFXM |
FXMXF |
FXMXM |
MXMXF |
MXMXM |
A mm |
B mm |
|||
1 |
Fig.1502 |
15000 |
P506069 |
P506076 |
P506083 |
P506087 |
P506093 |
P506100 |
154 |
308 |
1.5 |
Fig.1502 |
15000 |
P506070 |
P506077 |
P505457 |
P506088 |
P506094 |
P506101 |
154 |
308 |
2 |
Fig.602 |
6000 |
P506071 |
P506078 |
P506084 |
P506089 |
P506095 |
P506102 |
191 |
381 |
Fig.1502 |
15000 |
P503842 |
P503850 |
P503840 |
P503848 |
P505362 |
P505364 |
191 |
381 |
|
Fig.2002 |
20000 |
P506072 |
P506090 |
P505584 |
P506080 |
P506096 |
P506103 |
191 |
381 |
|
3 |
Fig.602 |
6000 |
P506073 |
P506081 |
P506085 |
P506091 |
P506097 |
P506104 |
203 |
406 |
Fig.1502 |
15000 |
3268575 |
3263821 |
3262298 |
3265538 |
3265947 |
3268629 |
203 |
406 |
|
Fig.2002 |
20000 |
P524672 |
P524673 |
P519451 |
P524674 |
P524675 |
P524676 |
203 |
406 |
|
4 |
Fig.602 |
6000 |
P506075 |
P506082 |
P506086 |
P506092 |
P506098 |
P506105 |
208 |
417 |
Fig.1502 |
15000 |
P500631 |
P500633 |
3268031 |
P500632 |
P506099 |
P506106 |
208 |
417 |
|
Fig.2002 |
20000 |
P524677 |
P518756 |
P518790 |
P524680 |
P524681 |
P524682 |
208 |
417 |
Fitting Type |
Size |
Configuration |
End Connection |
CWP Psi |
Part No. |
Weight kgs |
Longsweep Elblow |
2 |
M x F |
Fig.1502 |
10000 |
3260438 |
12.3 |
Longsweep Elblow |
3 |
M x F |
Fig.1502 |
10000 |
3262406 |
23 |
Lateral |
2 |
F x M x F |
Fig.1502 |
10000 |
P500724 |
24.4 |
Lateral |
2 |
M x F x F |
Fig.1502 |
10000 |
3261421 |
24.4 |
Wye |
2 |
M x F x F |
Fig.1502 |
10000 |
3261421 |
12.3 |
Wye |
2 |
M x F x F |
Fig.2202 |
15000 |
3248668 |
12.6 |
Cross |
2 |
F x F x F x M |
Fig.1502 |
10000 |
3261015 |
29.4 |
Cross |
2 |
F x F x M x M |
Fig.1502 |
10000 |
3260888 |
30.2 |
Cross |
2 |
M x F x F x F |
Fig.2202 |
15000 |
3259191 |
34 |
Cross |
2 |
M x F x M x M |
Fig.2202 |
10000 |
P501752 |
36.7 |
Cross |
3 |
F x F x M x F |
Fig.1502 |
10000 |
P501753 |
85.3 |
Tee |
2 |
F x F x F |
Fig.1502 |
10000 |
3265042 |
23 |
Tee |
2 |
F x F x M |
Fig.1502 |
10000 |
3260359 |
25.7 |
Tee |
2 |
F x M x F |
Fig.1502 |
10000 |
3259575 |
25.7 |
Tee |
2 |
F x M x M |
Fig.1502 |
10000 |
3259188 |
29 |
Tee |
2 |
M x M x F |
Fig.1502 |
10000 |
3263209 |
29 |
Tee |
2 |
M x M x M |
Fig.1502 |
10000 |
3265075 |
33.2 |
Tee |
2 |
F x M x F |
Fig.2202 |
15000 |
3263266 |
25.7 |
Tee |
2 |
F x M x M |
Fig.2202 |
15000 |
3259225 |
32.2 |
Tee |
3 |
F x F x M |
Fig.1502 |
10000 |
3265044 |
76.2 |
Tee |
3 |
F x M x F |
Fig.1502 |
10000 |
P505146 |
50.8 |
Tee |
3 |
M x F x M |
Fig.1502 |
10000 |
P500322 |
62.1 |
Tee |
3 |
M x M x F |
Fig.1502 |
10000 |
3263553 |
62.1 |
Elbow |
2 |
F x F |
Fig.1502 |
10000 |
3269540 |
18.6 |
Elbow |
2 |
M x F |
Fig.1502 |
10000 |
3260360 |
23.1 |
Elbow |
2 |
F x M |
Fig.2202 |
15000 |
3264680 |
23.8 |
Elbow |
3 |
M x F |
Fig.1502 |
10000 |
3262076 |
67.1 |
How to Order
BETTER is committed to being one of your valued suppliers. We are dedicated to answering your inquiries and processing your orders in the shortest time. Your help by supplying as much relevant information as possible will greatly improve our ability to meet or exceed your expectations.
When ordering standard items for known applications, all that is required is the part numbers with a brief description; when ordering non-standard items for special applications, some extra information will be required as below:
1. Size, pressure rating, model and style
2. Type of fluid to be handled
3. The operating temperature
4. If special material required
5. If special documentation required
6. Other application mechanical loads or movement
Welcome to contact us to know more flow control products!
