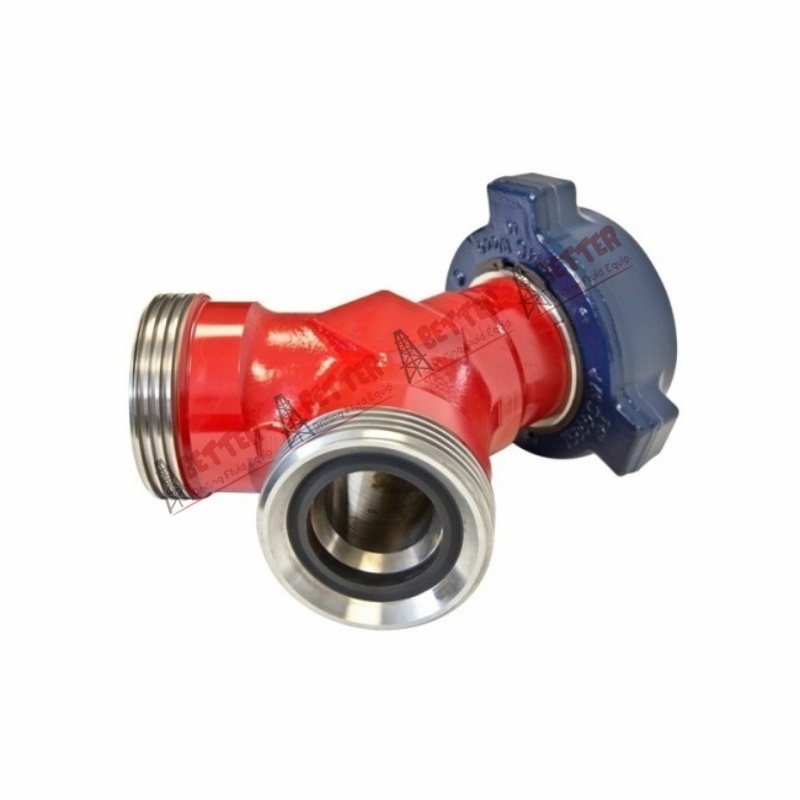

FMC Weco Hammer Union Wyes 15000PSI Fig 1502 Y forged Adapter

Products

FMC Weco Hammer Union Wyes 15000PSI Fig 1502 Y forged Adapter

Product No.:2023101111116

  • Details

INTEGRAL FITTINGS

BETTER weco style adapters and integral forged fittings are ideal for handling fluids at cold working pressure up to 20000 psi. Block Tee, elbows, crosses, wyes, laterals can be combined to suit virtually any installation, also union crossover, pup joints, swivel joints, steel loop hose can be provided.

Integral Fitting Wye Adapter, Y type crossover, belong to the Integral Fittings family. Our union crosses are fully designed, produced, and tested according to API 6A and API 16C standards. These crosses are widely used in cementing, fracturing and testing lines, and other well service applications. Crosses for both standard service and sour service are available. Our Hammer Union Crosses are interchangeable with FMC Weco’s and other major brands.

Material

Integral Forged Alloy Steel

Material Standards

AISI 4130, AISI 4140, 35CrMo, 42CrMo

Size

1”, 2", 3", 4"

End Conection

Fig.602, Fig.1002, Fig.1502, Fig.2002

Usage

Oil and gas, offshore industries

Pressure

Standard Service (15000 PSI)
H2S Service, Sour Gas (10000 PSI)

Temperature Range

-46~121 c degree

Standard

API Spec.16A, 16C, NACE-MR-01-75

Origin

CHINA

Brand

BETTER

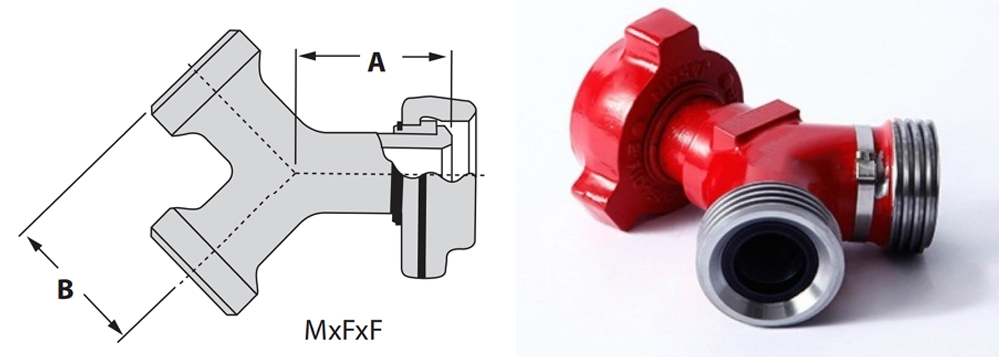

Wye standard

Nom.Size in.

End Connection

CWP Psi

Part No.

Dimensional Data

MXFXF

MXMXF

A mm

B mm

1

Fig.1502

15000

P506164

133

127

1.5

Fig.1502

15000

P506166

133

127

2

Fig.602

6000

2362652

133

127

Fig.1502

15000

3208846

133

127

Fig.2002

20000

3254106

133

127



Remarks: The below mentioned part number is used for helping our customer fast confirmation only. We are not authorized to use these part numbers on any of our pump parts.

How to Order

BETTER is committed to being one of your valued suppliers. We are dedicated to answering your inquiries and processing your orders in the shortest time. Your help by supplying as much relevant information as possible will greatly improve our ability to meet or exceed your expectations.

When ordering standard items for known applications, all that is required is the part numbers with a brief description; when ordering non-standard items for special applications, some extra information will be required as below:

1.    Size, pressure rating, model and style

2.    Type of fluid to be handled

3.    The operating temperature

4.    If special material required

5.    If special documentation required

6.    Other application mechanical loads or movement


Welcome to contact us to know more flow control products!
