Weco Integral fittings Block Elbow FMC lateral 3261420 2M x 2F x 2F Fig 1502

Product No.:20231011113247

  • Details

INTEGRAL FITTINGS

BETTER weco style adapters and integral forged fittings are ideal for handling fluids at cold working pressure up to 20000 psi. Block Tee, elbows, crosses, wyes, laterals can be combined to suit virtually any installation, also union crossover, pup joints, swivel joints, steel loop hose can be provided.

Integral Fitting Lateral Adapter, Block Tee, belong to the Integral Fittings family. Our union crosses are fully designed, produced, and tested according to API 6A and API 16C standards. These crosses are widely used in cementing, fracturing and testing lines, and other well service applications. Crosses for both standard service and sour service are available. Our Hammer Union Crosses are interchangeable with FMC Weco’s and other major brands.

Material

Integral Forged Alloy Steel

Material Standards

AISI 4130, AISI 4140, 35CrMo, 42CrMo

Size

1”, 2", 3", 4"

End Conection

Fig.602, Fig.1002, Fig.1502, Fig.2002

Usage

Oil and gas, offshore industries

Pressure

Standard Service (15000 PSI)
H2S Service, Sour Gas (10000 PSI)

Temperature Range

-46~121 c degree

Standard

API Spec.16A, 16C, NACE-MR-01-75

Origin

CHINA

Brand

BETTER


Block TEE standard

Nom.

Size

in.

End Connection

CWP Psi

Part No.

Dimensional

F x F x M

FXFXF

FXFXM

FXMXF

FXMXM

MXMXF

MXMXM

A mm

B mm

1

Fig.1502

15000

P506069

P506076

P506083

P506087

P506093

P506100

154

308

1.5

Fig.1502

15000

P506070

P506077

P505457

P506088

P506094

P506101

154

308

2

Fig.602

6000

P506071

P506078

P506084

P506089

P506095

P506102

191

381

Fig.1502

15000

P503842

P503850

P503840

P503848

P505362

P505364

191

381

Fig.2002

20000

P506072

P506090

P505584

P506080

P506096

P506103

191

381

3

Fig.602

6000

P506073

P506081

P506085

P506091

P506097

P506104

203

406

Fig.1502

15000

3268575

3263821

3262298

3265538

3265947

3268629

203

406

Fig.2002

20000

P524672

P524673

P519451

P524674

P524675

P524676

203

406

4

Fig.602

6000

P506075

P506082

P506086

P506092

P506098

P506105

208

417

Fig.1502

15000

P500631

P500633

3268031

P500632

P506099

P506106

208

417

Fig.2002

20000

P524677

P518756

P518790

P524680

P524681

P524682

208

417

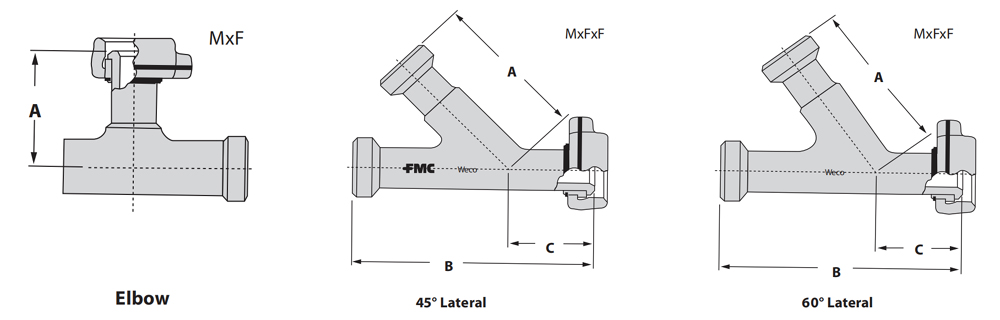

Lateral standard

Nom.

Size in.

End

Connection

CWP

Psi

Part No.

Dimensional Data

45°MXFXF

60° MXFXF

45° MXFXF

60° MXFXF

A mm

B mm

C mm

A mm

B mm

C mm

1

Fig.1502

15000

P506154

P506160

267

400

133

1.5

Fig.1502

15000

P505434

267

400

133

2

Fig.602

6000

3263029

267

400

133

Fig.1502

15000

3261420

267

400

133

Fig.2002

20000

P506156

267

400

133

3

Fig.602

6000

381

515

194

216

406

168

Fig.1502

15000

3266805

P506161

381

515

194

216

406

168

Fig.2002

20000

381

515

194

4

Fig.602

6000

P506158

381

515

194

292

495

203

Fig.1502

15000

P519459

381

515

194

292

495

203

Fig.2002

20000

P518757

381

515

194


Remarks: The below mentioned part number is used for helping our customer fast confirmation only. We are not authorized to use these part numbers on any of our pump parts.

How to Order

BETTER is committed to being one of your valued suppliers. We are dedicated to answering your inquiries and processing your orders in the shortest time. Your help by supplying as much relevant information as possible will greatly improve our ability to meet or exceed your expectations.

When ordering standard items for known applications, all that is required is the part numbers with a brief description; when ordering non-standard items for special applications, some extra information will be required as below:

1.    Size, pressure rating, model and style

2.    Type of fluid to be handled

3.    The operating temperature

4.    If special material required

5.    If special documentation required

6.    Other application mechanical loads or movement


Welcome to contact us to know more flow control products!
