BETTER Drilling Fluid Solution Limited

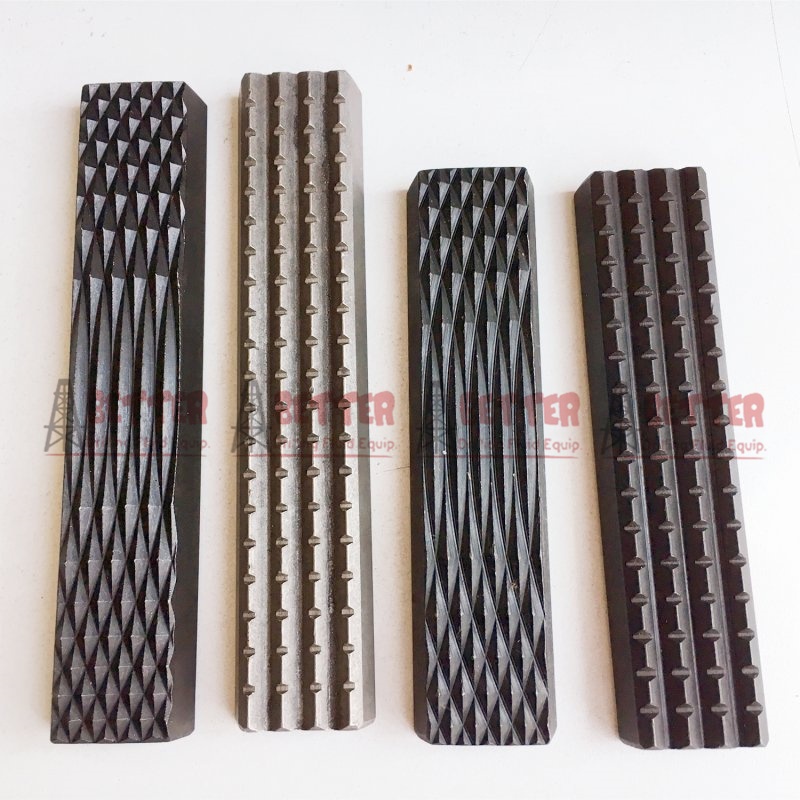

BETTER is also experienced in supplying the replacement tong dies and slip inserts with good quality and lower cost. Our tong dies are indentical with those popular brand manual tongs, power tons and iron roughneck.
Our tong dies are made out of quality alloy steel duly case hardened to a required depth, the hardened surface is highly resistance to provide a longer service life when gripping the tubulars.As the tong dies are core element when the tongs are working.
|
TONG DIES FOR MANUAL TONGS |
|||||
|
BETTER Part No. |
Dimensions H x W x L |
Tooth Type |
OEM Reference # |
Place of Use |
Weight |
|
BT16402-D |
1/2”x1.1/4” x 5.7/8” |
Blue Diamond |
16402-6 16402-2 6416039 4716 627-185-1578 1603 |
BJ Type B, DB, B Extend/HT50, HT55, HT65 Manual Tong Web Wilson AAX, H Woolley Type Super A, B B+V BV-55, BV-57, BV-65, BV-80 |
0.35kgs |
|
BT16402-P |
Pyramid |
||||
|
BT16402-S |
Straight |
||||
|
BT16401-D |
1/2” x 1.1/4” x 5” |
Blue Diamond |
16401-2 16401-6 6416020 4631 103426 4616 627-185-1500 1602 |
BJ Type SDD, C, F & LF Manual Tong BJ Power Casing Tong( 4 ½”-13 3/8”) Woolley Type Super C Eckel model 850 Web Wilson B+V BV-25, BV-35, BV-100 |
0.3kgs |
|
BT16401-P |
Pyramid |
||||
|
BT16401-S |
Straight |
||||
|
BT16403-D |
1/2”x1.1/4”x3.7/8” |
Blue Diamond |
24768-2 101-251 337-02-098 6416012 24768-8 24768 1601 |
Short Die for BJ Type B Manual Tong BJ Drill Pipe Power Tong Eckel Power Casing Tong Farr Power Tongs |
0.25kgs |
|
BT16403-P |
Pyramid |
||||
|
BT16403-S |
Straight |
||||
|
BT16404-P |
1/2”x1.1/4”x2.7/8” |
Pyramid |
24770-2 |
Half Die for BJ Type B tong Short Die for BJ Type SDD, DB, C, F, LF Tong |
0.18kgs |
|
BT16303-P |
3/8” x 1” x 3 7/8” |
Pyramid |
6473 12-1003 6400019 |
BJ Powermatic tong Farr Power Tong Weatherford 5 ½” & 7 /8” |
0.20kgs |
|
BT16303-S |
Straight |
||||
|
|
|
|
|
|
|
|
Note: D = Diamond Tooth Pattern, P = Pyramid Tooth Pattern, S = Straight Tooth Pattern Diamond tooth dies are used when a more aggressive bite is required. |
|||||
