Mission Drilling Olympia Double Mechanical Seal

Product No.:2023926145958

  • Details

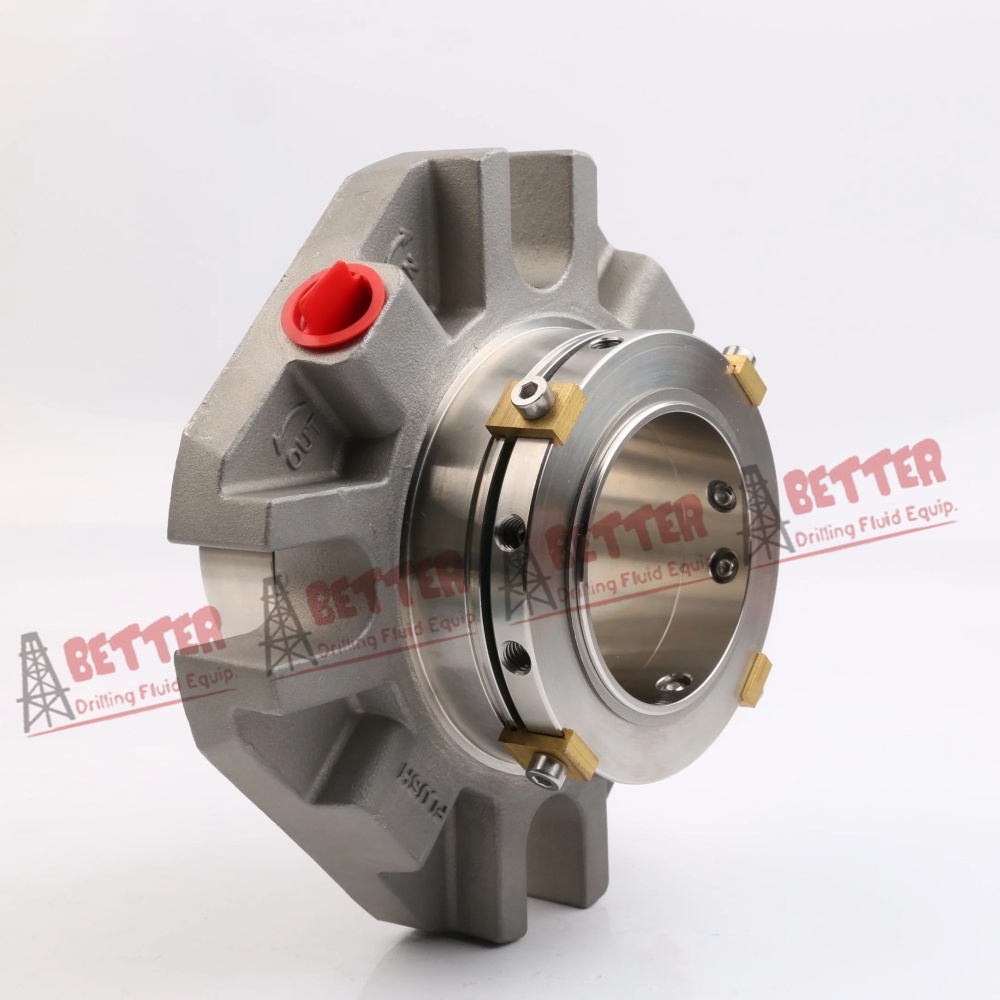

Ideal Double Cartridge Mechanical Seal Kcd Olympia

KDC Standard Stationary Double Seal Solution for Higher Effeicent OEM Customers

Operation Parameters:

  Temperature: -20 ~ 220ºC

  Pressure: 0-25Bar

  Linear Speed: up to 25m/s

  Sealing Product: Acid, alkaline, low percentage of pulp, water, oil and other similar medi



Materials:

  Seal Face: SSIC/TC/CARBON

  Rubber: EPDM/ FKM /Aflas/ Kalrez

  Springs: ALLOY276

  Metal Parts: 316SS/DUPLEX/ALLOY276/904L



Key Features:

  Stationary face compensation technology.

  Solid seal structure reduces deformation at high temperature and low temperature conditions.

  Intergrated and Bi-directional diversion, sleeve with pump ring.

  High speed limits, up to 220 degree. No seal face drop or displacement.

  Higher pressure limits, up to 25 bar.

  Wet Part in Duplex steel, 904L, Alloy 276 avaiable.

  Suitable for API Plan 52/53A/53B/54.

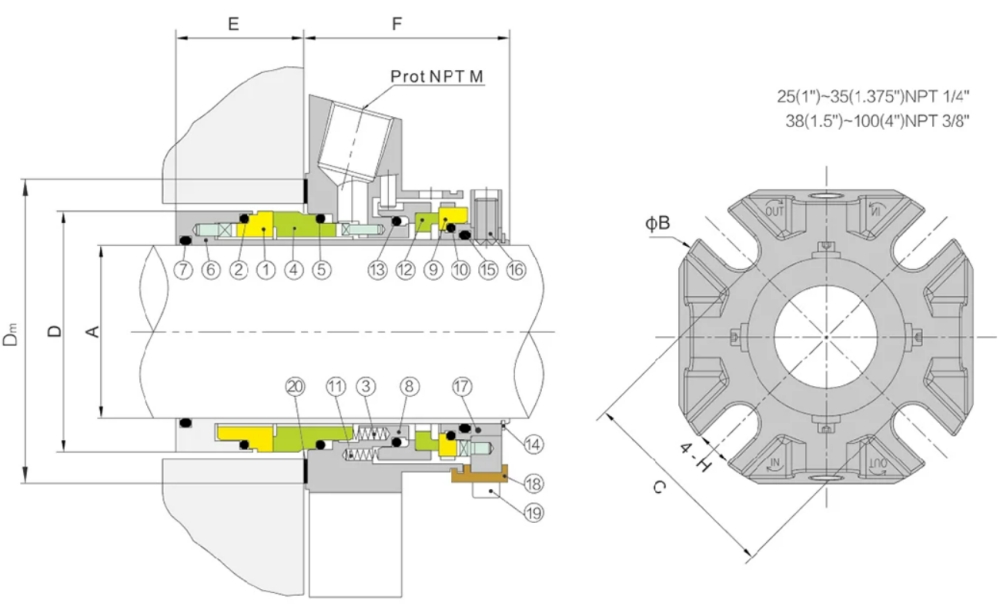

NO

Decription

Material

NO

Decription

Material

1

Inboard Rotary Face

SSIC/TC

11

Spring

Alloy 276

2

O-Ring

EPR/FKM/Aflas/Kalrez

12

Outboard Stationary Face

Carbon-316SS

3

Spring

Alloy 276

13

O-Ring

EPR/FKM/Aflas/Kalrez

4

Inboard Stationary Face

Carbon/SSIC/TC

14

Circlip

Alloy 276

5

O-Ring

EPR/FKM/Aflas/Kalrez

15

O-Ring

EPR/FKM/Aflas/Kalrez

6

Shaft Sleeve

316SS

16

Drive Screw

316SS

7

O-Ring

EPR/FKM/Aflas/Kalrez

17

Clamp Ring

316SS

8

Gland

316SS

18

Setting Clip

Brass

9

Outboard Rotary Face

TC-316SS

19

Clip Screw

316SS

10

O-Ring

EPR/FKM/Aflas/Kalrez

20

Gasket

AF1


φA

φB

C

φD

φDm

E

F

H

25

105.0

62.0

43.0

60.0

33.1

53.4

13.2

28

105.0

62.0

46.0

60.0

33.1

53.4

13.2

30

105.0

67.0

48.0

65.0

33.1

53.4

13.2

32

110.0

70.0

50.0

65.0

33.1

53.4

13.2

33

110.0

70.0

50.0

65.0

33.1

53.4

13.2

35

113.0

72.0

53.0

68.0

33.1

53.4

13.2

38

135.0

80.0

56.0

78.0

33.1

53.4

13.2

40

135.0

80.0

58.0

78.0

33.1

53.4

14.2

42

135.0

80.0

61.0

78.0

33.1

53.4

14.2

43

135.0

80.0

61.0

78.0

33.1

53.4

14.2

45

138.0

82.5

62.5

79.0

33.1

53.4

14.2

48

138.0

82.5

65.5

82.0

33.1

53.4

14.2

50

150.0

87.0

68.0

85.0

33.1

53.4

14.2

53

150.0

97.0

72.0

95.0

33.1

53.4

14.2

55

150.0

97.0

73.0

88.0

33.1

53.4

18.0

60

157.0

102.0

78.0

100.0

33.1

53.4

18.0

65

165.0

109.0

84.8

107.0

33.1

53.4

18.0

70

178.0

118.5

93.0

116.0

33.1

53.4

18.0

75

190.0

129.0

100.0

125.0

44.1

63.9

18.0

80

195.0

135.0

106.4

131.0

44.1

63.9

18.0

85

198.0

139.0

109.5

135.0

44.1

63.9

22.0

90

205.0

145.0

115.9

142.0

44.1

63.9

22.0

95

208.0

148.0

119.1

145.0

44.1

63.9

22.0

100

218.0

154.0

125.4

151.0

44.1

63.9

22.0

Remarks: The below mentioned part number is used for helping our customer fast confirmation only. We are not authorized to use these part numbers on any of our pump parts.
